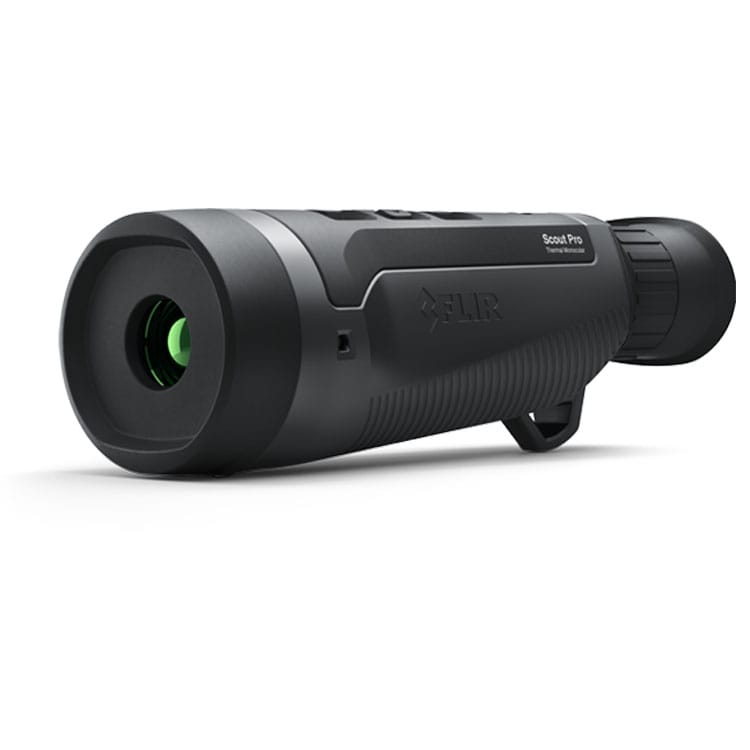

FLIR Scout Pro Thermal Monocular (Range: 500m)

Description

FLIR Scout Pro Thermal Monocular (Range: 500m)

Reveal your surroundings

See people in the dark from up to 500 m away, with a wide 32° field of view for maximum coverage and faster sweeps of areas

Reliable and Tactical

Built for the toughest missions, the FLIR Scout Pro Thermal Monocular is ideal for law enforcement, search and rescue, and critical public safety operations

Easy to Use

The FLIR Scout Pro Thermal Monocular is ready in seconds with an intuitive interface, single-handed operation, and effortless control, even in high-pressure situations

Streamlined Interaction

• Simplified, intuitive, and efficient live image interface for continuous focus on observed objects and areas
• Toggle feature for efficient zoom, mode selection, and brightness adjustment with one-click standby option
• Wireless app solution minimising gallery, image/ video management, and wireless file transfer

Mission-Critical Reliability

• Market-leading robust and compact design with 2 m  / 6.7 ft drop and IP67 classification to withstand operational environments
• 6-hour battery life and USB Type-C connector and power bank charging options
• Video and still images for evidence and documentation

Designed in Sweden–US detector–Manufactured in the EU

• 5 year Warranty (2 + 3 years after registration)

We also stock the FLIR Scout Pro II and FLIR Scout Pro III and the FLIR Scout Pro Charging Station

Specifications:

Field of view: 32°

Focal length: 19 mm

F-number: f/1.0

Focus: Fixed focus

Human detection range: 500 m (550 yds)

Minimum near focus distance: 4 m (13 ft)

Frame rate: 30 Hz

Display frame rate: 60 Hz

Spectral range: 7.5 – 13.5 µm

Pixel pitch: 17 μm

Thermal sensitivity, NETD: <38 mK @ 30°C (86°F)

Resolution: 640 × 480 Vox Microbolometer

Image processing: FLIR DDE 2.0

User interface

Zoom: 2x, 4x 6x, 8x

Colour palettes: White Hot, Black Hot, Sepia, Heat

Image presentation

Built-in display: XGA 1024 × 768

Video: XGA 1024 × 768

Power

Battery life: Up to 6 h

Battery type: Internal Li-ion cell

Charging time: 2 h 80% capacity

Physical

Colour (housing): Black

Drop rating: 2 m (6 ft 7 in)

IP rating: IP67, 1/2 hour submersible under 1 m

Operating temperature: −15°C to 45°C (5°F to 113°F)

Scout Pro Size (L × W × H): 19.2 × 6.4 × 6.4 cm (11 × 6 × 3 in)

Scout Pro Weight (incl. battery): 498 g (1.098 lbs)

Tripod mounting: UNC ¼”-20 UNC ¼”-20 UNC ¼”-21

Communication & Storage

Media gallery: Scout Pro App

Storage media: Embedded flash

Image modes: IR

File formats: Standard JPEG

Video recording: Yes

Non-radiometric IR video recording: MPEG4 AVC  (ITU-T H.264)

Storage capacity: 16 GB

Video streaming: Yes

Non-radiometric IR video streaming: WiFi/RTSP (MPEG4 AVC (ITU-T H.264))

USB streaming: UVC (YUV422 no overlay)

Wireless connectivity

Bluetooth: BLE

Streaming: Wi-Fi

What’s included

Handheld thermal camera

USB-C cable

Standard eyecup

Asymmetrical eyecup

Pouch
