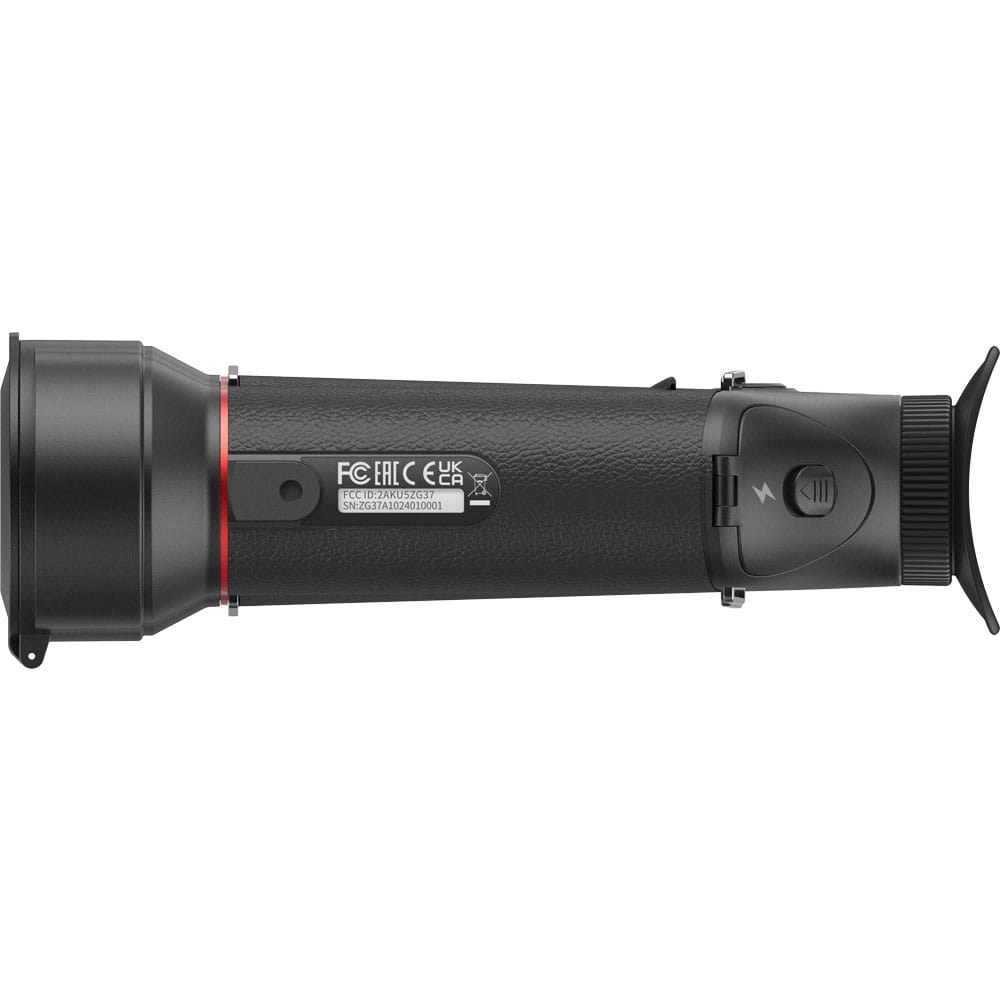

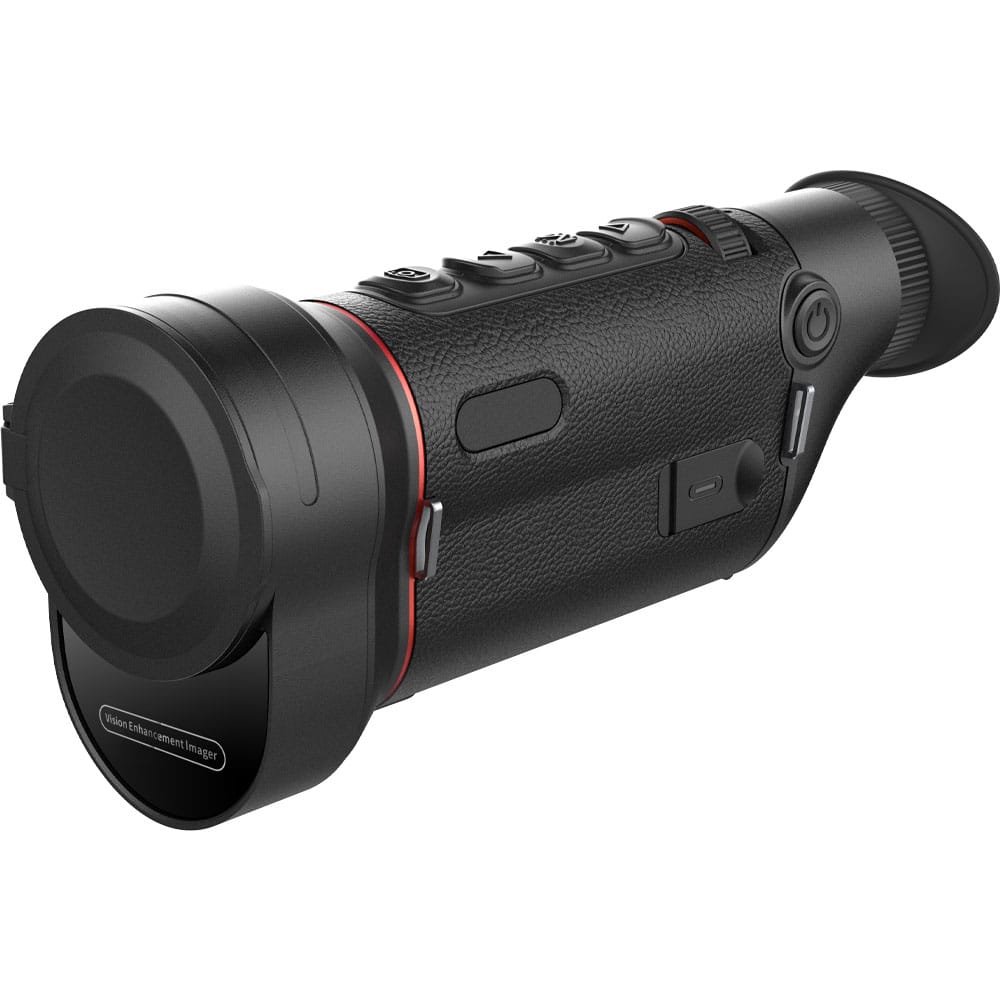

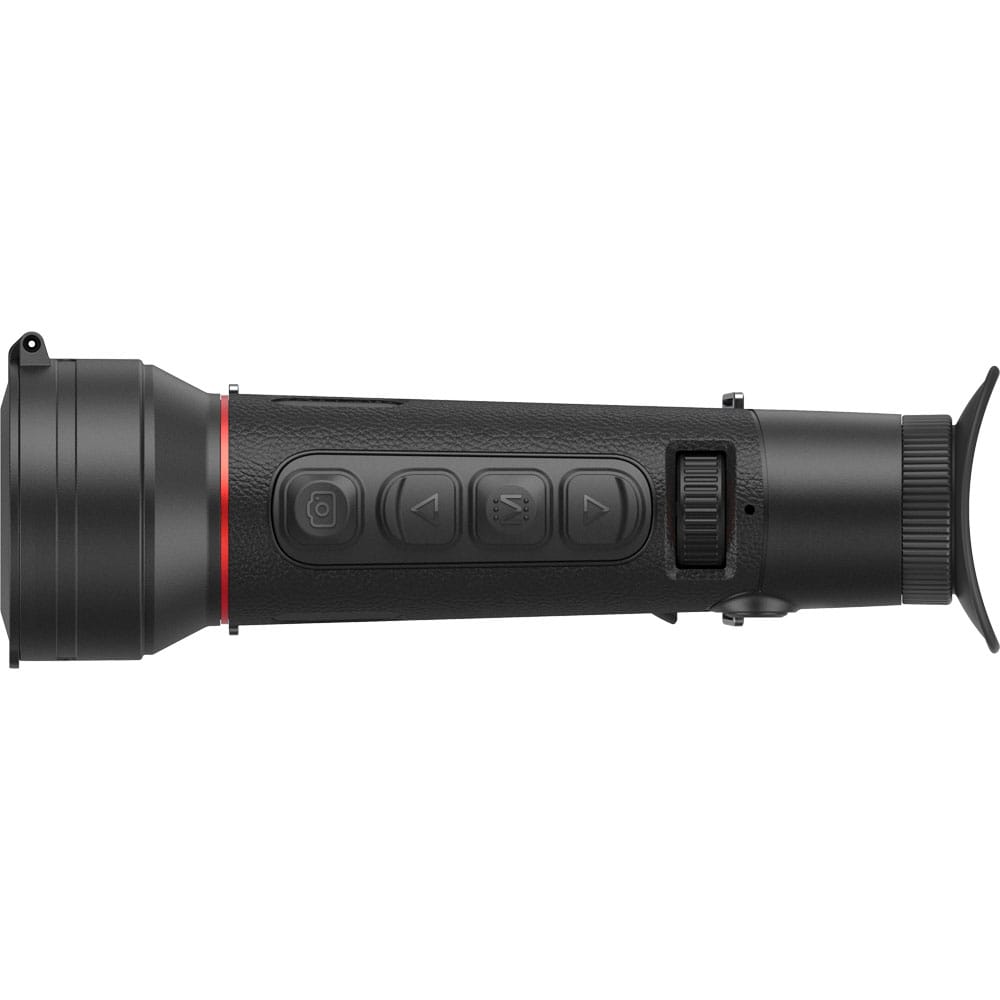

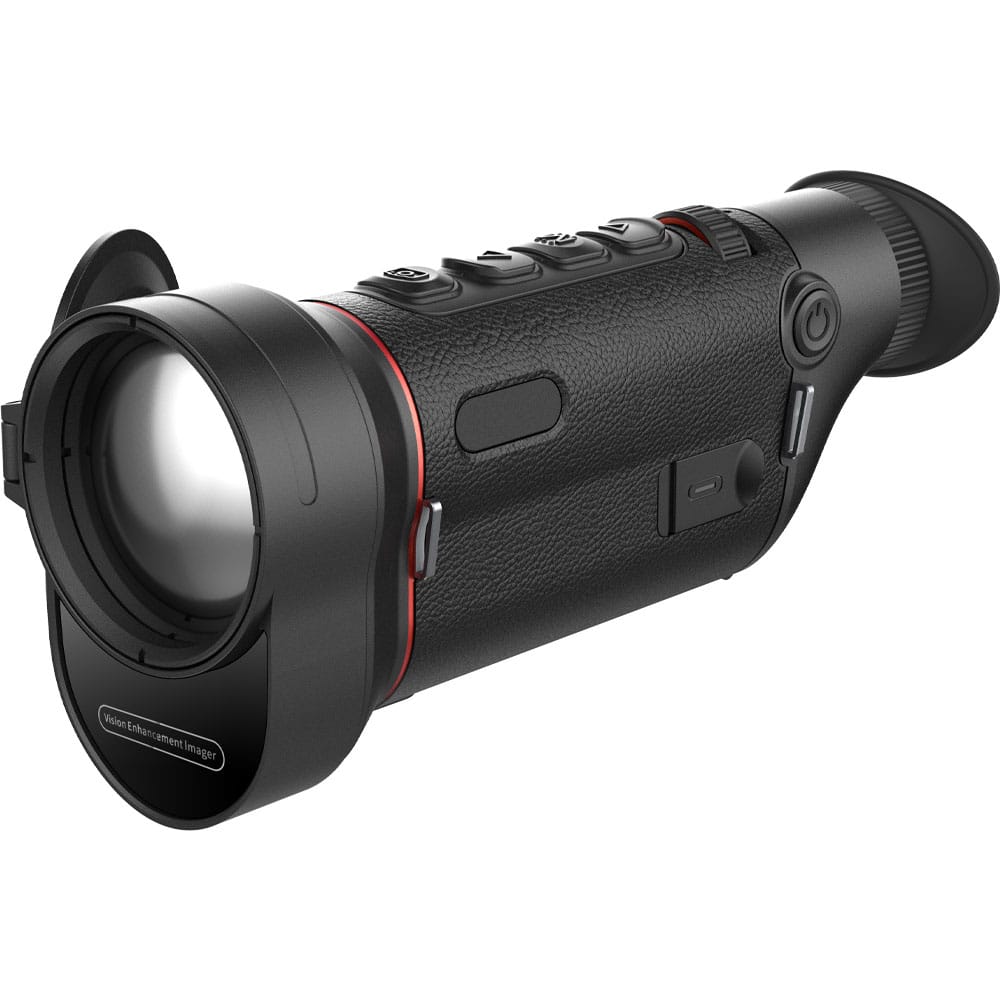

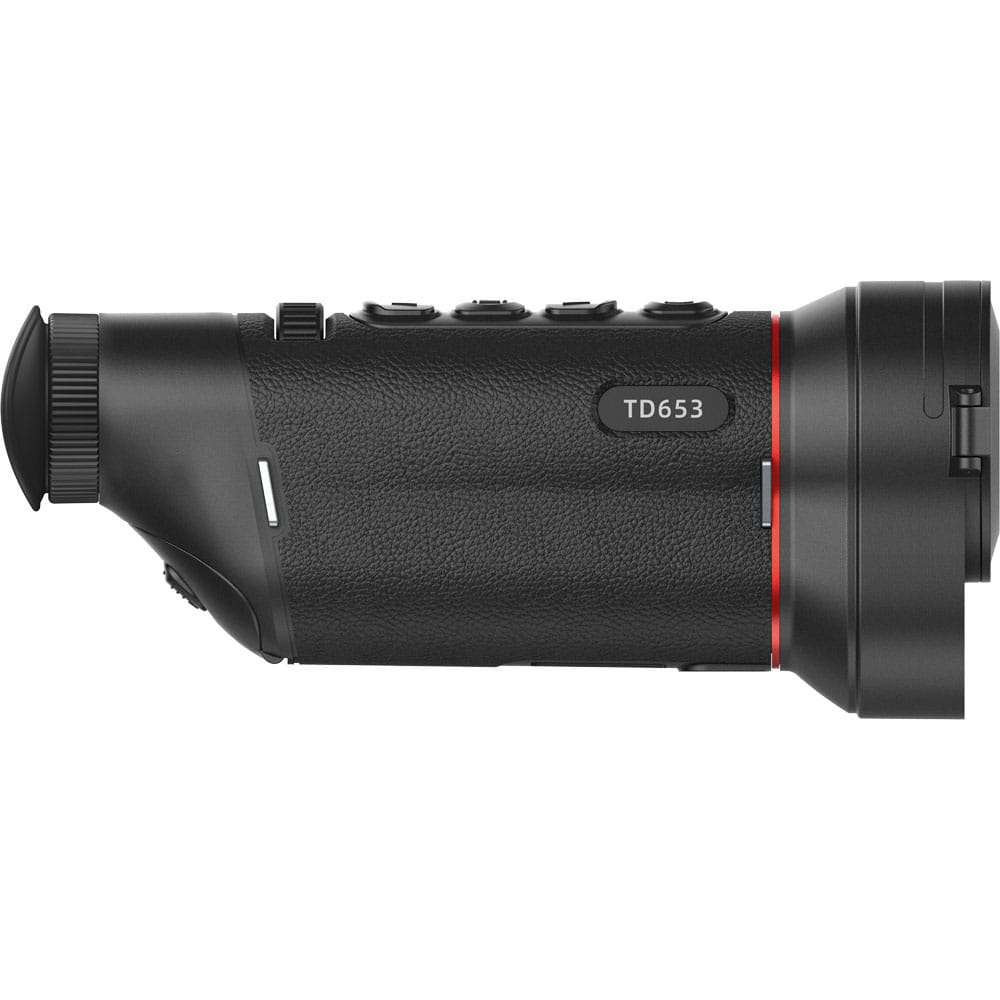

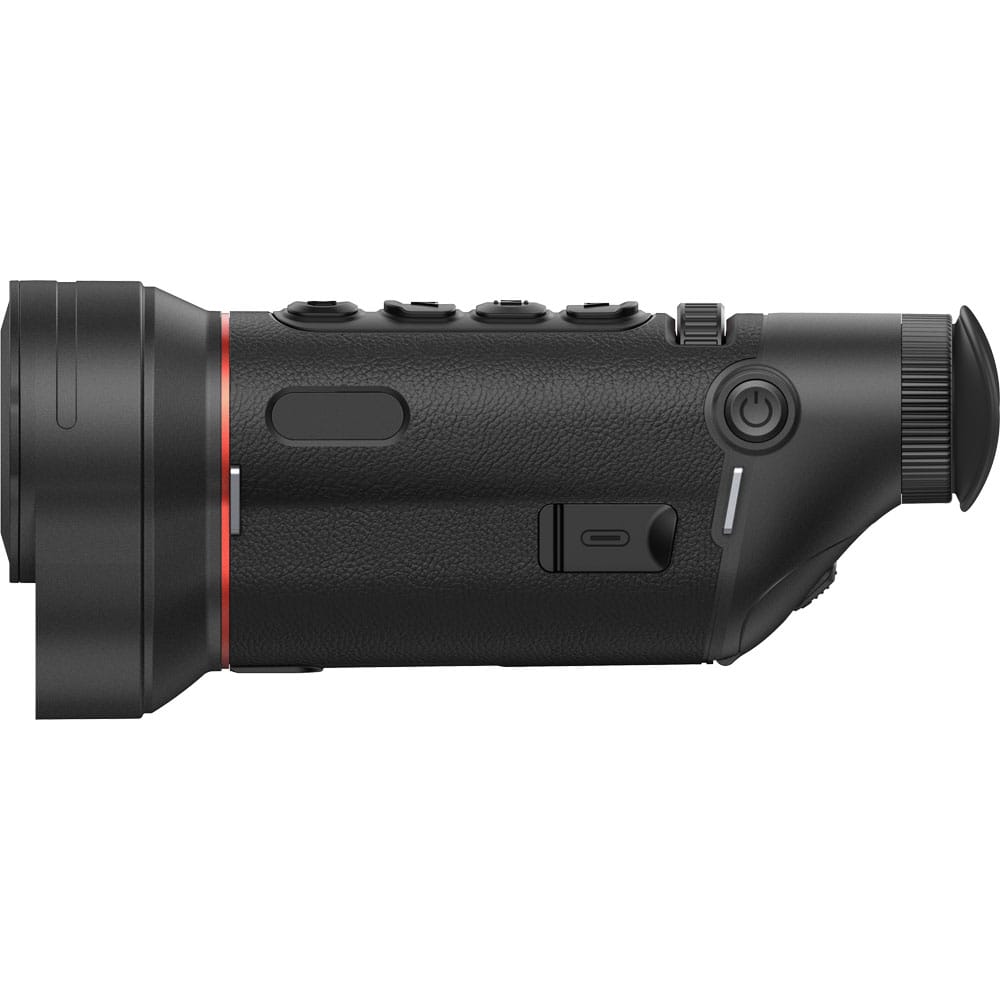

Guide TD653 Handheld Thermal Imaging Monocular

Description

The Guide TD653 Handheld Thermal Imaging Monocular is a high-performance device from the TD Gen3 Series, designed for precision, portability, and ease of use in outdoor environments.

It features a 640×512@12μm uncooled VOx infrared detector with a thermal sensitivity of ≤20mK, delivering sharp thermal imagery even in complete darkness.

The monocular includes a 50mm F1.0 lens, offering a detection range of up to 2600 metres (2800 yards), and supports manual focus via a fingertip roller for fast, one-handed adjustments.

Its 0.36″ AMOLED display with 1280×960 resolution provides vivid visuals, while the ambidextrous ergonomic design ensures comfortable handling for both left- and right-handed users.

Additional features include Wi-Fi and Bluetooth connectivity, photo/video recording with audio, 32GB internal storage, and an IP67-rated rugged housing for durability in harsh conditions.

Powered by a single replaceable 18650 battery, the Guide TD653 Handheld Thermal Imaging Monocularoffers up to 10 hours of continuous operation, making it ideal for extended field use

Specifications:

Product model: TD653
Sensor Type: Uncooled VOx Infrared Detector, 8 to 14μm
Resolution: 640×512@12μm
NETD: 20mK
Frame rate: 50Hz
Objective lens: 50mm, F1.0
Field of view: 8.8°×6.6°
FOV m@100m: 15×12
Magnification: 2.6x~20.8x
Detection range: 2600m/2800yd
Focus: Manual
Display type: 0.36” AMOLED 1280×960
Colour palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
Eyepiece Eye relief: 20mm; Diopter: -6 to +6; Zoom: 13.8x
WIFI: 2.4G, 5G
Interface: USB-C
Other interfaces: Microphone, Bluetooth
Recording function: Photo/Video (+Audio recording)
Memory capacity: 32GB
Battery type: Single, Replaceable 18650 Battery
Operating time: 10 hours
Operating temp.: -20°C to 50°C / -4°F to +122°F
Encapsulation: IP67
Weight (g/oz): 461/16.26
Size (mm/in): 189.5×67.5×88/7.46×2.66×3.46
Comes with: TD653 Device, Hand Strap, Battery Charger, 18650 Battery ×1, 5V 2A Adapter (UK), USB-A to USB-C Cable, Quick Start Guide, Warranty Card
Options: Bluetooth Remote Control, 18650 Battery
