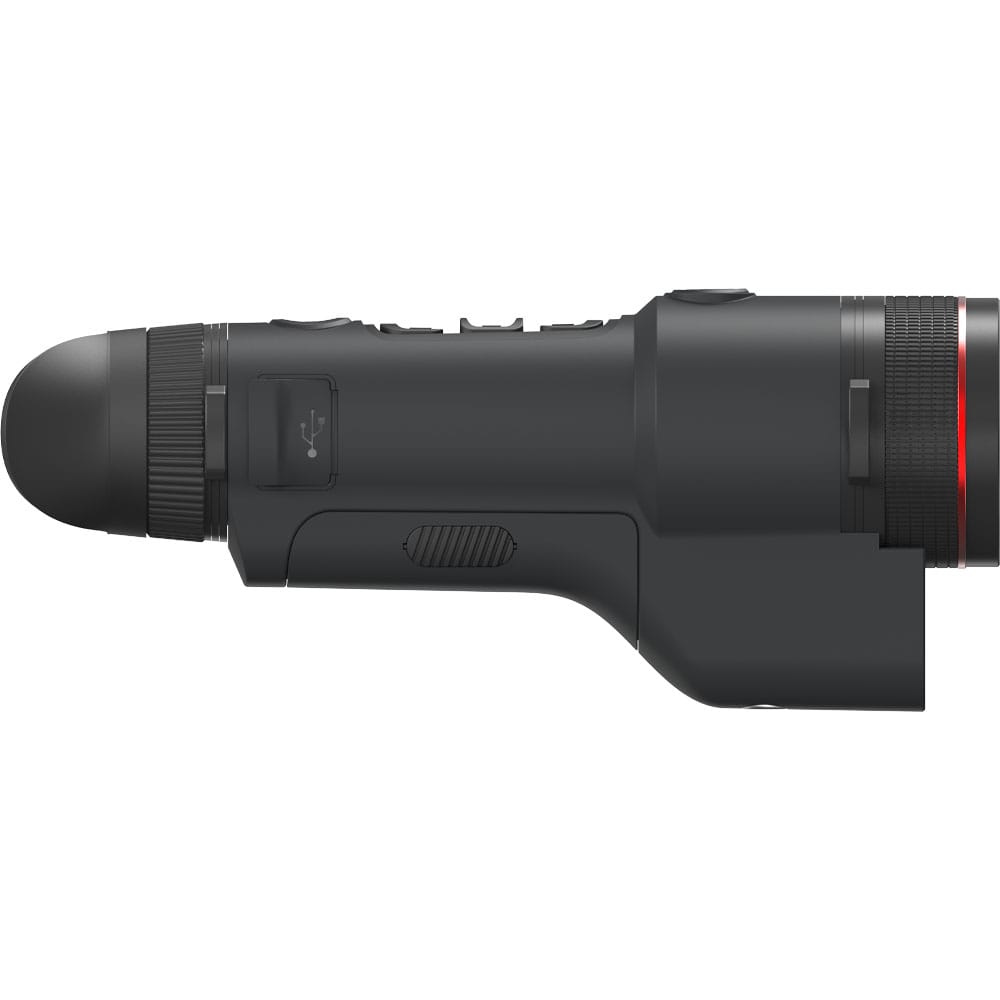

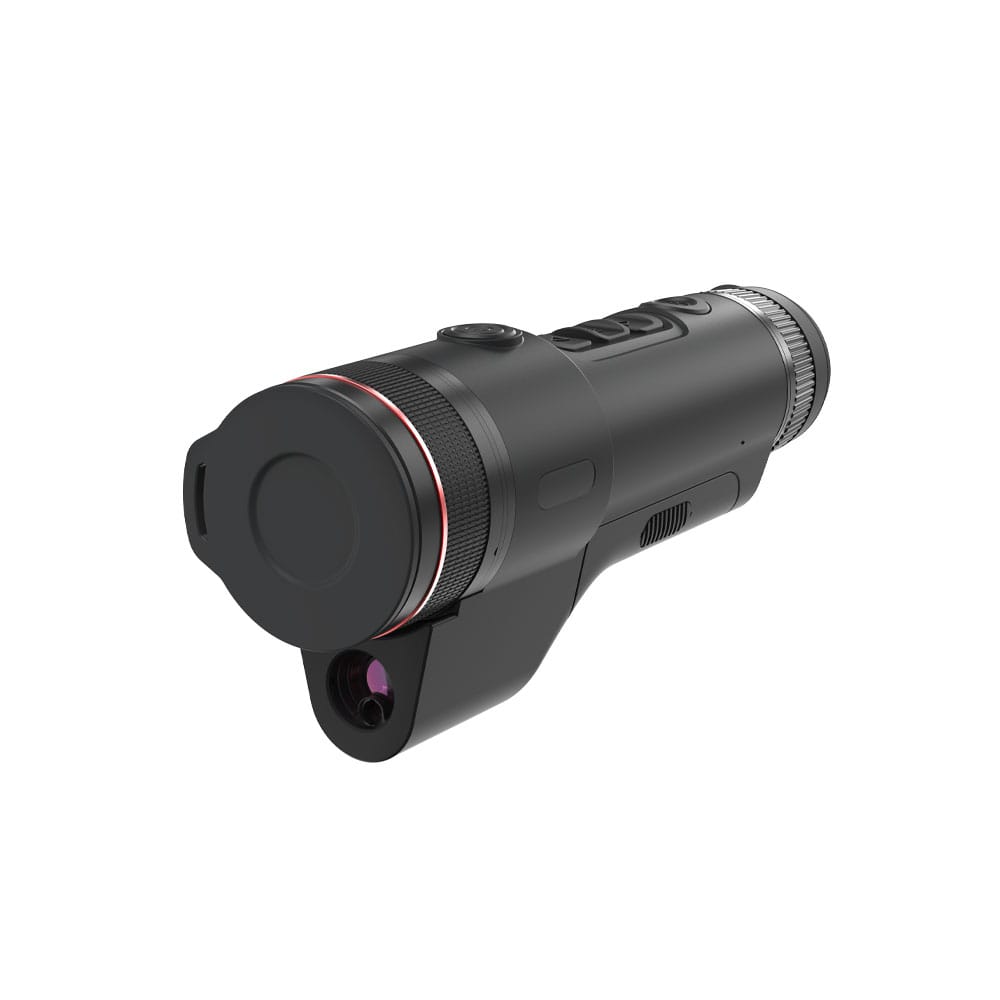

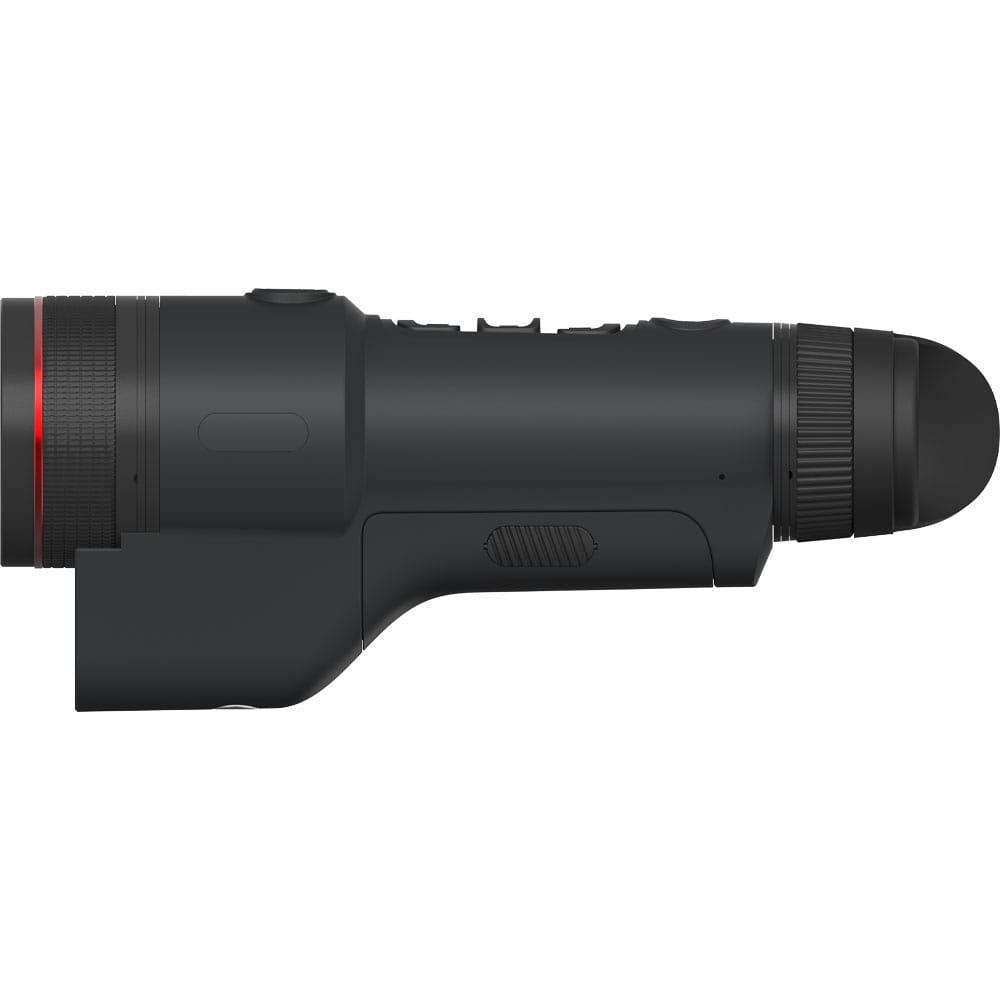

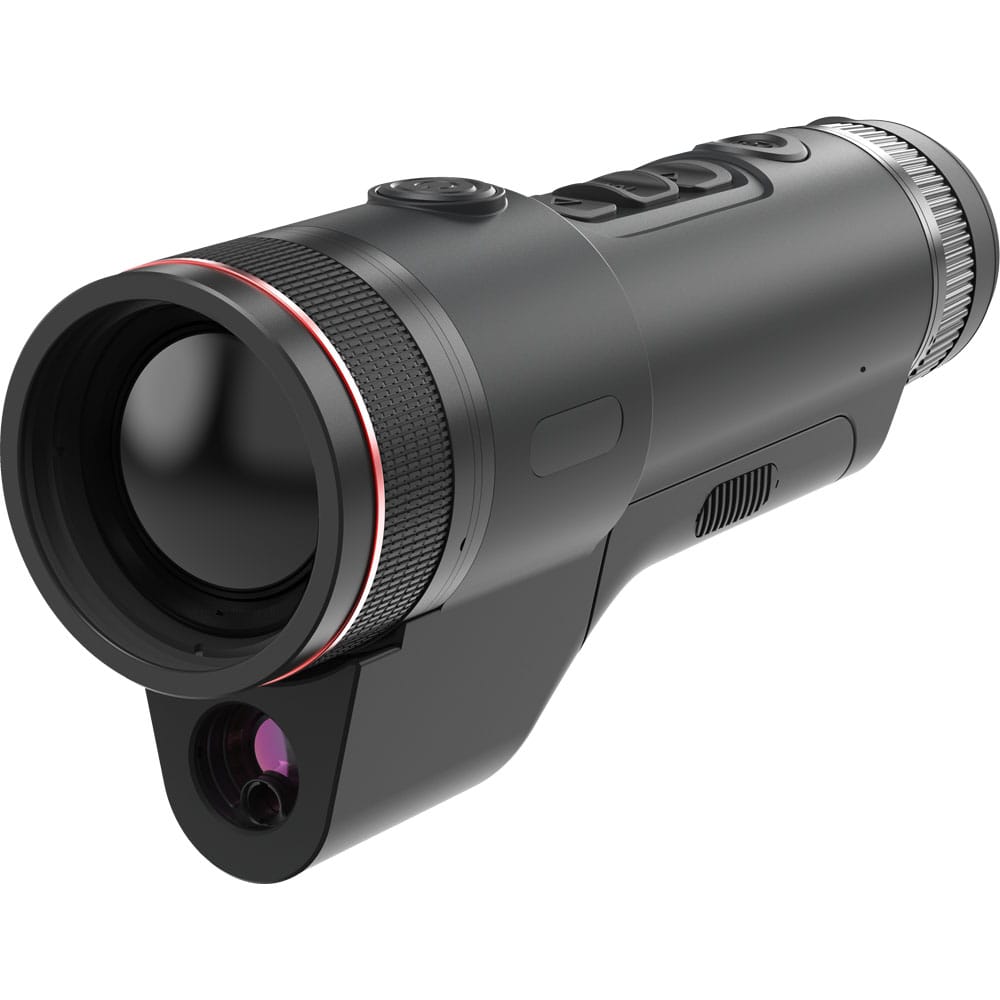

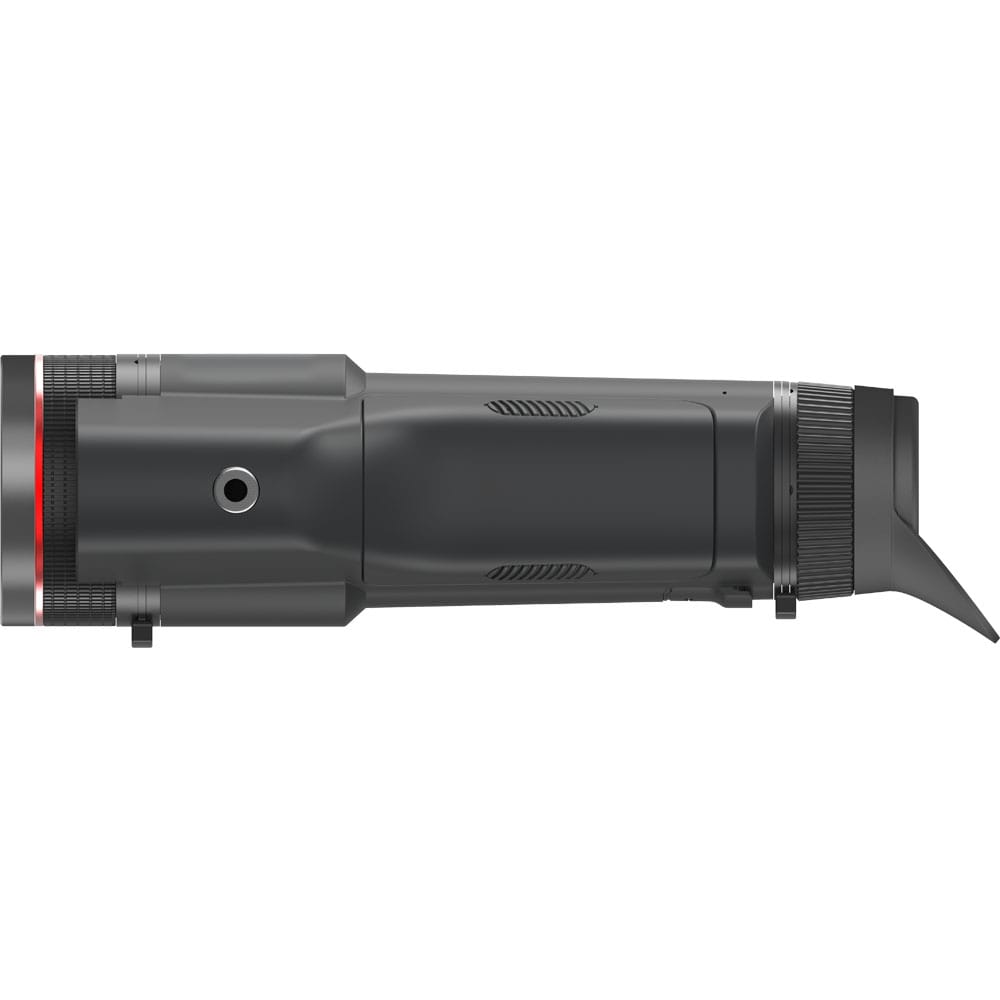

Guide TJ1250LP Handheld Thermal Imaging Monocular

Description

The Guide TJ1250LP Handheld Thermal Imaging Monocular is a top-tier device in the TJ LRF Pro Series, engineered for professional-grade thermal observation and outdoor adventures. It features a 1280×1024@12μm uncooled VOx infrared detector with an ultra-sensitive NETD of 18mK, allowing it to detect even the slightest temperature differences in complete darkness.

The monocular is equipped with a 50mm F1.0 lens, offering a detection range of up to 2600 metres (2800 yards), and a magnification range of 2.36x to 37.76x 2.

A standout feature is its 0.50″ AMOLED display with a resolution of 1600×1200, delivering a cinematic viewing experience akin to a 90” screen at 2.5 metres.

The built-in laser rangefinder of the Guide TJ1250LP Handheld Thermal Imaging Monocular measures distances up to 1500 metres (1630 yards), enhancing precision in target acquisition.

It supports seven colour palettes, photo and video recording with audio, and includes Wi-Fi, Bluetooth, compass, and gyroscope for smart functionality.

Powered by two replaceable 18650 batteries, it offers up to 6 hours of operation and is housed in a rugged IP67-rated body, making the Guide TJ1250LP Handheld Thermal Imaging Monocular ideal for harsh environments

Specifications:

Product model: TJ1250LP
Sensor Type: Uncooled VOx Infrared Detector, 8 to 14μm
Resolution: 1280×1024@12μm
NETD: 18mK
Frame rate: 50Hz/120Hz
Objective lens: 50mm, F1.0
Field of view: 17.5°×14°
FOV m@100m: 31×25
Magnification: 2.36x~37.76x
Detection range: 2600m/2800yd
Focus: Manual
Display type: 0.50” AMOLED 1600×1200
Colour palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
Eyepiece Eye relief: 16mm; Diopter: -6 to +6; Zoom: 18x
Laser rangefinder: 1500m/1630yd
WIFI: 2.4G, 5G
Interface: USB-C (Power supply/USB2.0)
Other interfaces: Microphone, Compass, Gyroscope, Bluetooth
Recording function: Photo/Video (+Audio recording)
Memory capacity: 256GB
Battery type: 2 Replaceable 18650 Batteries
Operating time: 6 hours
Operating temp.: -20°C to 50°C / -4°F to +122°F
Encapsulation: IP67
Weight (g/oz): 689/24.30
Size (mm/in): 247×101×70/9.72×3.98×2.76
Comes with: TJ1250LP Device, 18650 Battery ×2, Battery Charger, 5V 2A Adapter (UK), USB-A to USB-C Cable, Quick Start Guide, Warranty Card
Options: Bluetooth Remote Control, 18650 Battery
