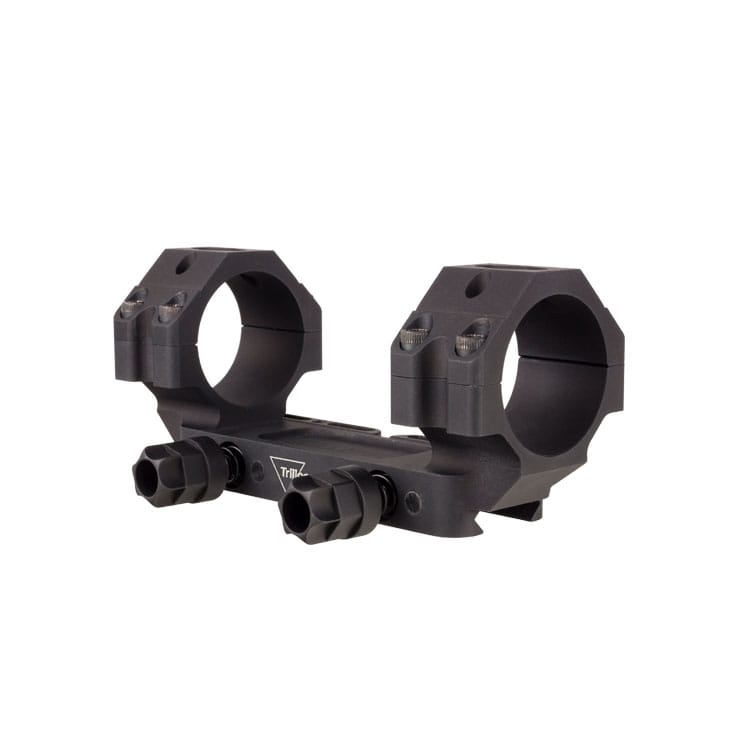

Trijicon Bolt Action Q-LOC Mount is designed to keep the optic as low as possible for hunting and long range precision rifle applications.
Featuring a Mil-Spec drop test rated 6061-T6 aluminum design and an easy to use one handed tool-less mounting system. The spring-loaded design allows for constant retention and maintaining of zero even if the knobs are not tightened.
This mount boasts a low weight and low profile design with precise return to zero performance and is compatible with any Mil-Spec or NATO Picatinny rail.
Designed specifically for variable powered optics, this lightweight mount is perfect for mounting Trijicon variable powered tube scopes with an objective lens 42mm and smaller, on any firearm platform with a picatinny rail.
QUICK-RELEASE, RETURN-TO-ZERO: Multiple proprietary recoil lugs ensure total rail engagement. Easily remove and re-attach without needing to confirm zero.
PRECISION-CUT DIMENSIONS: Ensures optimal placement on MIL-STD 1913, NATO, non-mil spec, and even damaged rails.
AUTOMATIC RETENTION KEEPS OPTIC SECURE: Heavy-duty springs ensure secure retention under heavy, repeated recoil. Facilitates one-handed mounting.
PROVEN DURABILITY: Machined from 6061 aluminum for outstanding, repeatable performance.
SNAG-RESISTANT KNOB DESIGN: Compact, circular design minimizes hazards of gear snags.
For detailed mounting instructions click here.
|Tube Size||30 mm|
|Height Above Rail||26.92 mm|
|Distance From Top of Mounting Rail to Optical Axis||1.06 in.|
|Torque Spec (to Rail)||Spring Tension Only: 12-16 in. / lbs|
|Can be Tightened To: 44-66 in. / lbs|
|Torque Spec (Ring Caps)||14-16 in. / lbs|
|Feature||Trijicon Q-LOC™ Technology|
|Note||Fits Objective Lens 42mm and Smaller|
• Matte Black Anodized Finish
• Made in the USA
