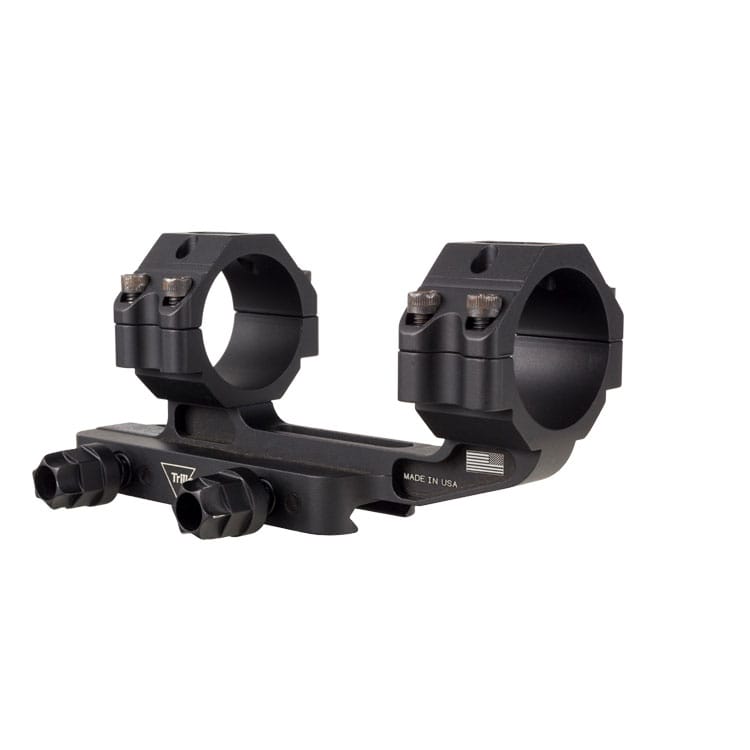

    Trijicon Cantilever Q-LOC Mount 30mm AC22040 1.535″ High 56mm Obj

    The Trijicon Cantilever Q-LOC Mount 30mm AC22040 is designed to keep the optic as low as possible for hunting and long range precision rifle applications.

    Featuring a Mil-Spec drop test rated 6061-T6 aluminium design and an easy to use one handed tool-less mounting system. The spring-loaded design allows for constant retention and maintaining of zero even if the knobs are not tightened.

    The Trijicon Cantilever Q-LOC Mount 30mm AC22040 boasts a low weight and low profile design with precise return to zero performance and is compatible with any Mil-Spec or NATO Picatinny rail.

    For tubes of 30mm diameter and objective lens of 56mm or less.

    £292.19

    AC22040
    Add to Favourites
    Add to Favourites

    DELIVERY INFO

    CONTACT US

    Description

    Trijicon Cantilever Q-LOC Mount 30mm AC22040 1.535″ High 56mm Objective (AC features a Mil-Spec drop test rated 6061-T6 aluminium design, with an easy to use one handed toolless mounting system.

    The spring-loaded design allows for constant retention and maintaining of zero even if the knobs are not tightened.

    This mount boasts a low weight and low profile design with precise return to zero performance and is compatible with any Mil-Spec or NATO Picatinny rail.

    Designed specifically for variable powered optics, this lightweight mount is perfect for mounting Trijicon variable powered tube scopes with an objective lens up to 56mm, on any firearm platform with a picatinny rail.

    Trijicon Cantilever Q-LOC Mount 30mm at a height of 1.535 in. will also match the standard height above rail for all clip-on devices.

    Features:

    • QUICK-RELEASE, RETURN-TO-ZERO:  Multiple proprietary recoil lugs ensure total rail engagement. Easily remove and re-attach without needing to confirm zero
    • PRECISION-CUT DIMENSIONS:  Ensures optimal placement on MIL-STD 1913, NATO, non-mil spec, and even damaged rails
    • AUTOMATIC RETENTION KEEPS OPTIC SECURE: Heavy-duty springs ensure secure retention under heavy, repeated recoil. Facilitates one-handed mounting
    • PROVEN DURABILITY: Machined from 6061 aluminium for outstanding, repeatable performance
    • SNAG-RESISTANT KNOB DESIGN: Compact, circular design minimises hazards of gear snags



    For detailed mounting instructions for the Trijicon Cantilever Q-LOC Mount 30mm AC22040 click here.

    Specifications:

    Weight241.82 g
    Tube Size30 mm
    Length154.94 mm
    Width52.58 mm
    Height Above Rail38.99 mm
    Distance From Top of Mounting Rail to Optical Axis1.535 in.
    Torque Spec (to Rail)Spring Tension Only: 12-16 in. / lbs
    Can be Tightened To:  44-66 in. / lbs
    Torque Spec (Ring Caps)14-16 in. / lbs
    FeatureTrijicon Q-LOC™ Technology
    NoteFits Objective Lens 56mm and Smaller.

    Matches height above rail for all potential clip-on devices.

    • Matte Black Anodized Finish
    • Made in the USA
